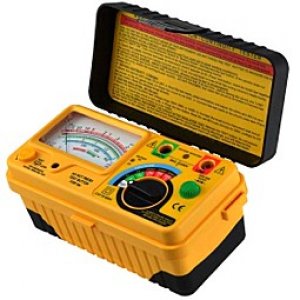

● Hight quality Taut Band movement. ● Three insulation test voltages (DC) : 250V, 500V, 1000V. ● Two ranges for continuity test : 2Ω & 20Ω. ● Compact and lightweight. ● AC voltmeter with linear scale up to 600Vac. ● 200mA continuity short-circuit current. ● 1mA test current on insulation test at nominal voltage. ● Automatic discharge of capacitive and inductive circuit with charge stored in the circuit under test. ● Live warning and display of external voltage presence. ● Fuse, air gap, crowbar and overload protected. ● On line battery monitoring shows if battery is ok. ● Manual zero ohm adjustment. ● Low battery consumption. ● Mirror scale. ● Push and turn locking switch for continuous and hand free testing. ● BS 16 edition.
SPECIFICATIONS
Insulation Resistance
Test voltage (DC V)
250V / 500V / 1000V
Output voltage on open circuit
Rated test voltage +10%
Measuring ranges
0-100MΩ / 0-200MΩ / 0-400MΩ
Mid-scale value
1MΩ / 2MΩ / 4MΩ
Scale multiplier
×1/2 / ×1 / ×2
Accuracy
± 5% of indicated value
Output short- circuit current
≥ 1.0mA
Continuity
Measuring ranges
2Ω / 20Ω
zero Ω adjustment by knob
ˇ
Output short- circuit current
≥ 200 mA
Accuracy
± 1.5% of scale length
AC Voltage
Range
0-600V AC
Accuracy
± 3% of scale length
General
Voltage warning
Warning light circuit live lit From 90Vdc / 70Vac, Buzzer beep from 24V ac/dc
Battery check
Battery check indicate good batteries from 8.5Vdc to 13Vdc during a load test of 250mA.
Battery OK
Battery OK LED lit from 8.5Vdc and is operative while testing.
